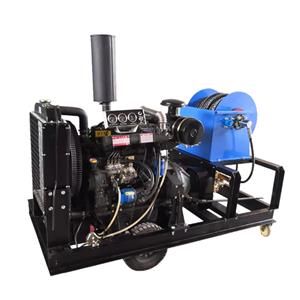

Skid Mounted Diesel Engine Driven Dewatering Pumps

Skid Mounted Diesel Engine Driven Dewatering Pumps description

Skid Mounted Diesel Engine Driven Dewatering Pumps is a new type of diesel engine water supply product independently developed by our company, which carries forward the concept of our company's diesel engine fire water pump and diesel engine emergency water pump.

The basic supporting technology of the diesel engine water pump is brought to the control system as a safety guarantee for the overall equipment. The control system adopts the company's new generation "Bold" intelligent LCD controller, which is simple and easy to learn, with integrated LCD display, automatic program control, clear and straightforward. It is foolproof and does not require professional programming or code, and is simple and easy to learn.

Skid Mounted Diesel Engine Driven Dewatering Pumps can achieve high-precision measurement and display of data and the operating status of the unit, with powerful functions.

1. Automatic Start: After the diesel water pump unit receives the start signal, it can automatically start and operate at full load in a short time.

2. Automatic Charging: The battery can be automatically charged through mains power or the diesel engine's built-in charger.

3. Automatic Protection: Through various sensors and control unit modules, real-time monitoring and control of the engine and water pump are carried out, and the LCD display screen on the control box panel displays the running status of the equipment and related measured parameters (such as speed, water temperature, oil pressure, head, flow, etc.). It achieves functions such as manual and automatic startup/shutdown of the diesel engine water pump unit, monitoring/control of pump head, pump flow, and pipe network pressure, as well as comprehensive fault protection.

4. Automatic Preheating: Puts the diesel engine in a hot standby state to ensure emergency work.

Application Range: Municipal, smelting, ports, airports, petrochemical, power plants, and liquefied gas stations.

• Single-stage single-suction pump flow range: 6 ~8300m³/h  Head range: 10~120m  Set power matching range: 20~300kW

• Single-stage double-suction pump flow range: 002~20000m³/h  Head range: 10~180m  Set power matching range: 20~4000kW

• Multi-stage centrifugal pump flow range: ~ 5406m³/h  Head range: 33~1056m  Set power matching range: 20~1500kW

• Mixed-flow pump flow range: 0 ~ 200500³m/h  Head range: 5~30m  Set power matching range: 20~2000kW.

Skid Mounted Diesel Engine Driven Dewatering Pumps section photo

1- Oil outlet valve tight seat;

2- Oil outlet valve spring;

3 An oil valve pair;

4- sleeve positioning nail;

5- Lock screw;

6- Oil control sleeve;

7-spring -- upper seat;

8- Plunger spring;

9- spring lower seat;

10 one oil screw;

11 a oil pump body;

12- adjusting gear lever;

13- bleed screw;

14- Oil limit screw;

15- Plunger coupling parts,

16- timing adjustment screws;

17- timing adjustment nut;

18- Adjust the gasket;

19- Roller body components;

20- shaft cover parts; 21- Camshaft
