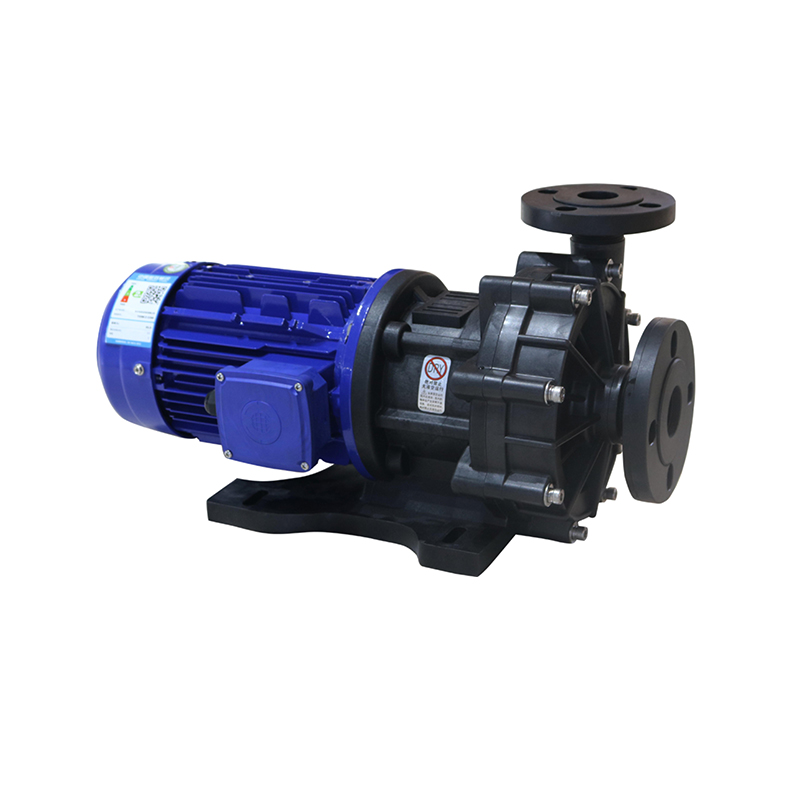

Magnetic Drive Coupling Pump
- Gaotian
- Shanghai
- 15days
- 1500
Magnetic Drive Coupling Pump Key Features:
(1) Compact size, lightweight, sleek design, easy installation, requiring no foundation bolts or exposed pipe fittings.
(2) Due to the alignment of the bearing housing with the impeller axis, there is no issue with stuffing box insertion, and it can operate without load. This significantly reduces mechanical friction losses and extends the lifespan of the mechanical seals.
(3) All flow components are made from food-grade materials, ensuring they are non-toxic, non-hazardous, and resistant to wear.
(4) The overall design is reliable and comprehensive.
(5) Customizable options include automated control cabinets, enabling unmanned operation upon request.
(6) Each unit comes equipped with a safety valve for enhanced operational safety.
(7) Low motor temperature rise ensures minimal environmental impact.
(8) The pumps in this series prioritize environmental friendliness.
The advantages of magnetic drive centrifugal pumps include:
• Total leak-proof operation: There is no leakage between the inner and outer rotors due to the magnetic coupling, allowing for larger intervals between them. With a non-metallic isolation sleeve, the thickness should not exceed 8mm, and for a metallic one, 5mm. The thicker insulation reduces the likelihood of it wearing out, and the larger gap between the isolation sleeve and rotors enhances reliability.
• Reliable operation: Wearing of the magnetic seal minimizes the risk of damage to the inner rotor and isolation sleeve, ensuring longer service life.
• Easy maintenance and replacement: The isolation sleeve is designed for convenient removal and replacement on-site, facilitating repairs.
• Compatibility with SIC bearings: It offers good wear resistance, extending its lifespan.
• Pump speed is not restricted by the motor: It allows for different motor speeds, providing flexibility.
Additional benefits:
• Magnetic drive centrifugal pumps eliminate the need for an impeller shaft to pass through the pump casing, instead transmitting torque via a magnetic field and the thin-walled isolation sleeve, resulting in a completely sealed system, eliminating any potential leak paths.
• They incorporate overload protection during power transmission.
• In addition to high requirements for magnetic material and magnetic circuit design, the rest of the pump's technical specifications are relatively low.
• Minimal maintenance and repair workload due to the simplified design.
Product Specifications (for 50Hz):
- Pump Power: 0.18-0.25 kW
- Full Flow Rate: 105-130 L/min
- Full Head: 9.8-12.4 m
Primary Materials: GFRPP (Glass-reinforced polypropylene), PVDF (Polyvinylidene fluoride)
- Operating Temperature Range: 0-75°C (GFRPP), 0-90°C (PVDF), 0-100°C (ETFE + CF)
Product Variations or Synonyms:
- Corrosion-resistant magnetic pump
- Leak-proof magnetic pump
- Shaftless magnetic drive pump
- Magnetic circulation pump, etc.
